Home > Products > Universal LED Automotive Bulb > 1156 1157 BA15S BAY15D LED Bayonet Bulb > LED Car Bulb 12V DC 1157 BAY15D W21W 1157 2323 15SMD Double Intensity Bayonet Base Ligh

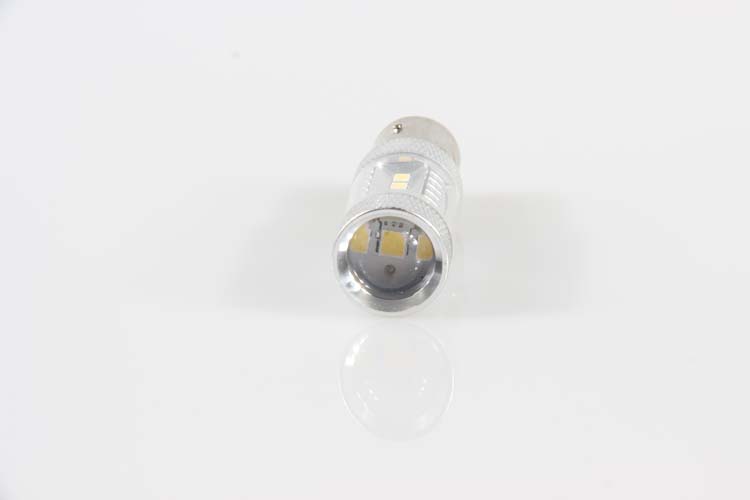

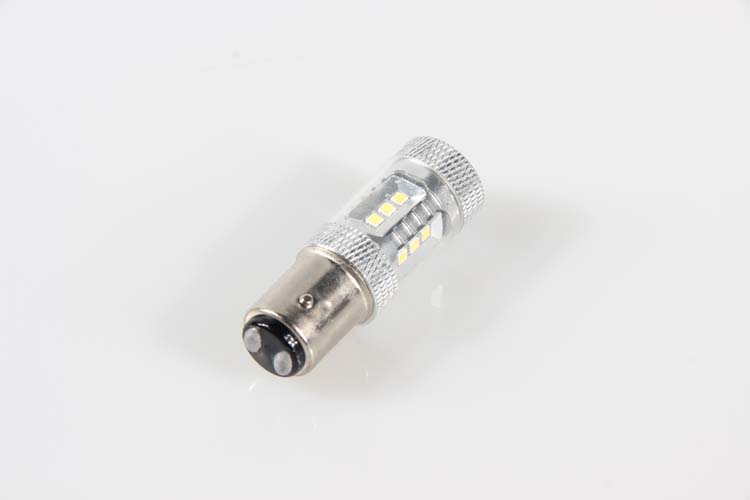

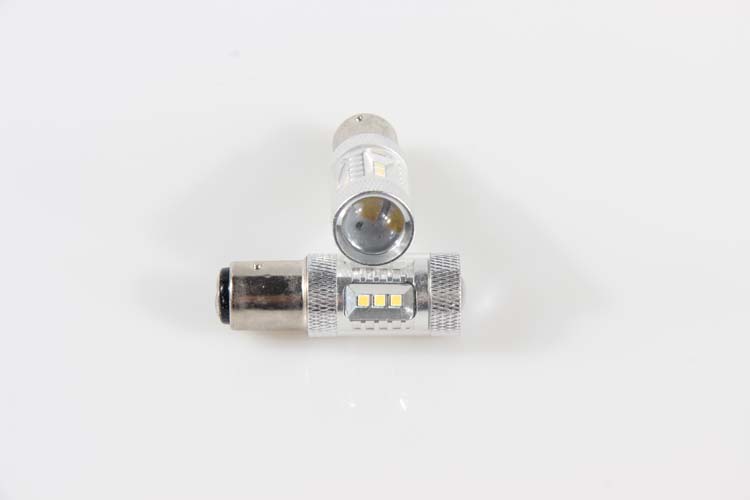

LED Car Bulb 12V DC 1157 BAY15D W21W 1157 2323 15SMD Double Intensity Bayonet Base Ligh







ITEM NO. :
1157-2323-15SMD

 Brief Description :


This1157 auto LED bulb consisted of 15PCS chip ultra-SMD2323 LEDs and built-in resistors or IC driver for constant current enable the bulb high quality and stability;with BAY15D W21W bulb base applied for brake light.

Features :


Thoroughly manufactured 1157-2323-15SMD bulb which is in accordance with EC standard, with independent circuit,constant current and with volt stabilizing treatment.
the SMD2323 LEDs are much longer lifetime, better stability and reliability, uniformed light illumination and wide range beam .
High luminous purity and penetrating power, no need of light filter by lamp cap.
Work instantly without delay, no need of warm start, fast response speed.
Low power consumption and energy saving.
Only be 1/10 power consumption of halogen lamp, which better protect car electric circuit.

Available for all sorts of colors, to stand out the characteristic light individualization.
High temperature resistance and Corrosion resistance, good sealing and waterproof


Specifications :


Item Name :1157-2323-15SMD
LED Amount & Type : 15PCS 2323 LEDs
LED Power Consumption : 7.5Watt
Luminous Flux : 1200LM
Rated Voltage : 12-24VDC
Available Color : White,Blue,Red,Green,Yellow

Color Temperature : 5500-6500K
Package : Blister card or Anti-Electrostatic Bag
